Use VT7 & VT8 for isolation and conditioning of ac and dc voltages
and currents, converting
to rms, mean or instantaneous outputs.

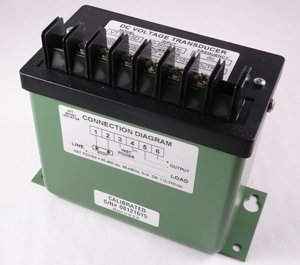

![VT7 & VT8 DC & RMS Voltage Transducers](images/vt7_vt8_web.jpg) |
FEATURES
![bullet](images/Check%20mark.jpg) |
2500 Vac dielectric test |
![bullet](images/Check%20mark.jpg) |
Wide frequency range |
![bullet](images/Check%20mark.jpg) |
VT8 Provides a dc output which is
proportional
to the mean or RMS value of the ac/dc input |
APPLICATIONS
![bullet](images/Check%20mark.jpg) |
Accurate measurement of dc and
non sinusoidal ac components |
![bullet](images/Check%20mark.jpg) |
Shunt isolation |
|
DESCRIPTION
The
Model VT7 Series dc voltage transducer produces an
output which is directly proportional to the input from dc
to 10kHz. It functions as a millivolt dc shunt or a high
voltage isolator to 1000V
The Model VT8 Series
(RMS) ac voltage transducer provides a dc output directly
related to the true RMS or mean value of the input over the
dc to 10kHz frequency range. Inputs range from 50mV to 1000
volts. Input/output dielectric test of 2500Vac. Consult
factory for special ranges
|
Click here for VT7-VT8 datasheet pdf
|

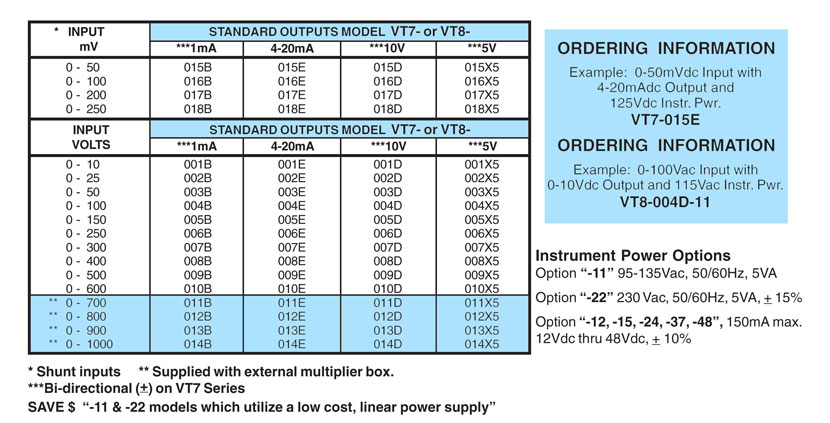

![](images/vt7_web1.jpg) |

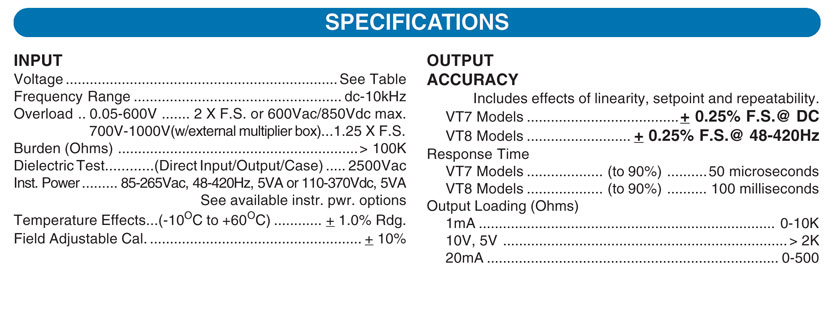

![](images/vt7_web2.jpg) |

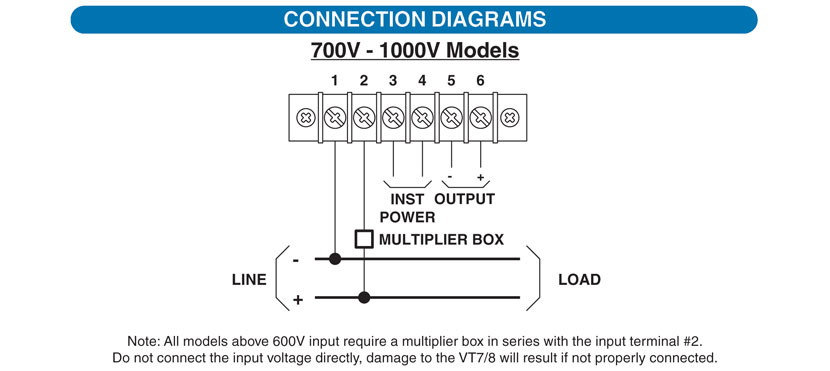

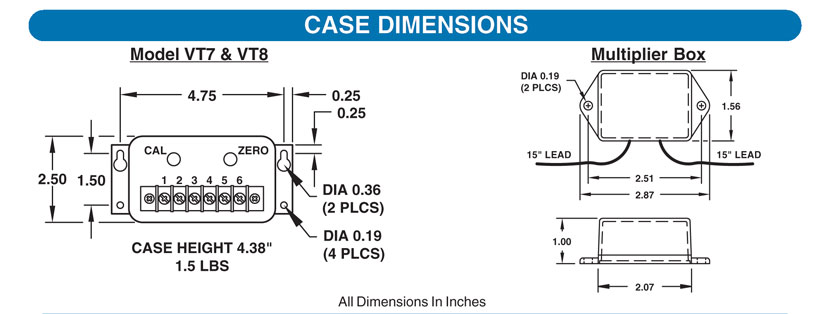

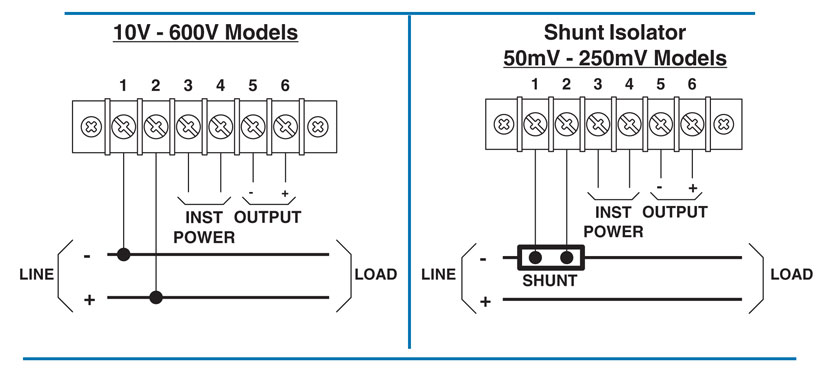

CASE DIMENSIONS & CONNECTIONS
- MODELS VT7 & VT8 |
![](images/vt7_web3.jpg) |
![](images/vt7_web4.jpg) |
![](images/vt7_web5.jpg) |
|
