Split Core
Current Transformers Clip Together Range
| Description | Fast installation Split Core current transformer, with a unique clip-together feature. Supplied in a moulded case with 1metre/3ft connection cables. Suitable for primary ranges up to 800A with 5A secondary. |
| Application |
Compatible
with any 5A input transducer, 5A metering or logging system.
For reliable installation into existing networks without
disconnecting cable circuits. The fast action clip function ensures
a permanent and robust installation.
|
 |
 |
|
Ranges |
| Primary | VA | Class | Model |
| 100A | 1 (2.5) | 1 (3) | SCCT100 |
| 150A | 1.5 (2.5) | 1 (3) | SCCT150 |
| 200A | 2.5 | 1 | SCCT200 |
| 250A | 2.5 | 1 | SCCT250 |
| 300A | 2.5 | 1 | SCCT300 |
| 400A | 5 | 1 | SCCT400 |
| 500A | 5 | 1 | SCCT500 |
| 600A | 5 | 1 | SCCT600 |
| 800A | 5 | 1 | SCCT800 |
|
Technical Specification |
|
|
Conforms to IEC 185, BS7626, BSEN 60044-1 and IEC 60044-1 |
|
|
Accuracy 1% |
|
|
Rated system voltage 0.72/3kV. |
|
|
Ambient temperature range -30ºC to 80ºC. |
|
|
Insulation level 3kV for 1 minute. |
|
|
Continuous current, 1.2 x rated current. |
|
|
Enclosure flame retardancy UL94VO. |
|
|
Cable or Busbar mounting |
|
|
Supplied with Black and Red 1metre / 3ft cables |

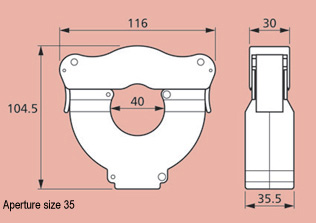

Dimensions (mm) |
ORDER EXAMPLE:
Sold in
multiples of 6
Model SCCT500 = split core current transformer
500A primary, 5A secondary 5VA class 1
