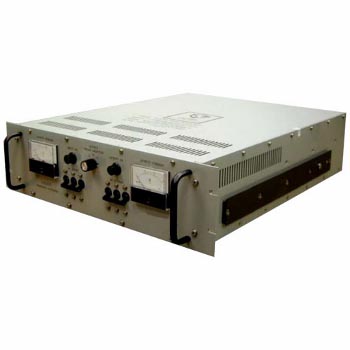

Powertek's three phase ac power source, rack mount frequency converter

Powertek frequency converters are high-reliability power sources specifically designed for demanding applications in high shock, vibration, humidity, and EMI environments. They can be built to meet MIL-STD-810, MIL-STD-167, MIL-STD-1399, MIL-STD-1472, MIL-STD-461, and other standards optionally. GL-Series models utilize high frequency PWM topology, offering significant volume and weight advantages suitable for severe environment and high reliability applications such as:

✓ Military Applications: HMMWV, UAV, Shipboard,
Submarine, Aircraft and Mobile Power Units, Shelters
✓ Aircraft Power
✓ Communications Systems
✓ Cellular Sites
✓ European Power / Export Testing
✓ Power Conditioning & Frequency Stabilization
✓ U.S. Power Abroad
✓ Railroad Signaling Power

Click here for Three Phase Output Converter Datasheet

Specifications

Power Ratings: 1.5KVA – 4.5KVA

Input Voltage: Most standard AC voltages including 115, 120, 200, 208, 220, 240, 277, 380, and 480 available in single and three-phase configurations. Power Factor correction available on selected GLFC-Series models.

Output Voltage: Most standard AC voltages including 115, 120, 200, 208, 220, 240, 277, 380, and 480 available in three-phase configurations.

Frequency: 50 Hz, 60 Hz, or 400 Hz (+/-0.5%)

Frequency Regulation: +/-0.5% N.L. to F.L. (Crystal available)

Frequency Transients: None

Voltage Regulation: +/-1.5% N.L. to F.L.

Efficiency: Approximately 85-95% (depending on model)

Total Harmonic Distortion: 3% Typical, 5% Max

Overload: 120% Typical Power Factor: 0.7 Lead to 0.7 Lag

Input Circuit Protection: Circuit Breaker / Fuses, Transient Suppressors Output

Circuit Protection: Current Limit, Short Circuit Protection, Thermal Protection, and Semi-Conductor Protection

Phase Rotation: Any (three-phase models)

Standard Features

✓ Solid-State Design

✓ Advanced Modular Capabilities
✓ Pure Sinewave Output
✓ Lightweight, extremely compact enclosures
✓ High reliability
✓ Over voltage (OV), over load (OL) and over temperature (OT)
protected
✓ Mean time to repair (MTTR) below 30 minutes; modular design
✓ Withstands high reactive load
✓ Tight voltage and frequency regulation
✓ Boards are conformal coated

Environmental and Mechanical

Operating Temp:
-20�C to +50�C Standard
-40�C to +71�C Optional (on selected models)

Cooling: Forced Air by internal fan

Vibration: Normal shipping and handling

Shock: 20g, 11 mS half sinewave – Designed to meet MIL-STD-810 optionally

Elevation: 10,000 ft. typical

Humidity: to 95% RH non-condensing – Designed to meet MIL-STD-810. All boards conformal coated with Acrylic MIL-I-46058 Type R.

Audible Noise: 65 dBA at 5 ft. typical

EMI: Designed to meet FCC Part 15, Class A. Designed to meet MIL-STD-461 with optional additional filtering.

MTBF: 30,000+ hours typical per MIL-HDBK-217

MTTR: Less than 30 minutes

Partial Model Selection

Partial Model No.	KVA	Output Voltage	Output Frequency (Hz)	Weight (Lbs.)	Size in.(HxWxL)
GLFC1.5K3/5	1.5	220/380	50	96	5.25x19x22.5
GLFC1.5K3/6	1.5	120/208	60	96	5.25x19x22.5
GLFC1.5K3/4	1.5	115/200	400	118	5.25x19x22.5
GLFC2K3/5	2	220/380	50	118	5.25x19x22.5
GLFC2K3/6	2	120/208	60	118	5.25x19x22.5
GLFC2K3/4	2	115/200	400	118	5.25x19x22.5
GLFC3K3/5	3	220/380	50	118	5.25x19x22.5
GLFC3K3/6	3	120/208	60	118	5.25x19x22.5
GLFC3K3/4	3	115/200	400	118	5.25x19x22.5
GLFC4.5K3/5	4.5	220/380	50	130	8.75x19x24
GLFC4.5K3/6	4.5	120/208	60	130	8.75x19x24
GLFC4.5K3/4	4.5	115/200	400	130	8.75x19x24

(Consult Factory for Additional Models)

Custom Options - where applicable

✓ Power Factor correction available on
selected GLFC-Series models
✓ Ruggedization to meet MIL-STD-810 shock,
vibration and humidity
✓ Wide temperature range -40�C to +71�C
✓ Special output voltages and frequencies
✓ 19″, 23″, or 24″ Panel Mount
✓ MS Connectors or outlets
✓ Custom painting and marking
✓ Heavy-Duty Handles
✓ High inrush for motor start
✓ Wall Mount Plate
✓ Chassis slides (rack mount models only)

✓ Custom NEMA Wall-Mount or Floor-Mount
Enclosures

✓ Frequency Meters

✓ Elapsed Time Meter

✓ Alarm Contact Closures

✓ Remote Start / Stop Control

✓ Output Circuit Breaker

✓ Crystal Frequency Control

✓ Contacts for Remote Operation

✓ Dual Output

✓ +/- 10% Output Voltage Adjustment (located
on front door of Cabinet Models)

* Some options listed above may not be applicable or may be standard equipment on some Powertek Frequency Converters. Please contact us for details
