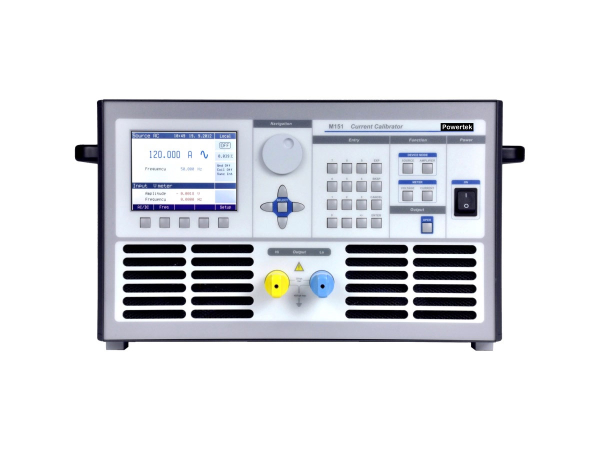

MC151 Precision Current Calibrator - high current calibrator 0-120A DC-1kHz
Replaced by PTK-110001-2LC
The MC151 Current calibrator is a precision current source capable of 8mA-120A with an extended 3000A range. Typical uses include calibration of kWHr meters, current sensors, current probes, clamp current probes, current transformers, shunts, ammeters, DMMs or as stable current source for test and development applications.
- Test and calibrate: energy meters, clamp-meters, shunts and ammeters
- Analog inputs allowing external voltage control and phase reference
- Current range 8mA to 120A (AC/DC), extension to 3000A
- Output frequencies DC, 15Hz to 1kHz
- Use with internal control or as a transconductance amplifier
- Built-in process multimeter
- Output compliance capability of 8 Vpk
- Standard Interface bus GPIB and RS232 and Labview Driver
- Multiple MC151 outputs can be paralled to increase current
- MC151 can be slaved with any Multifunction calibrator extending current range
- DC Resistance 16.6mOhm, inductance 30uH
Description
The MC151 ac/dc Current calibrator is a precision current source capable of 8mA-120 A. Typical uses include kWHr Energy meters, power analyzers, calibration of current sensors, current probes, clamp current probes, current transformers, shunts, ammeters, DMMs or as stable current source for test and development applications. The calibrator operates with its precision internal signal source or as an amplifier using an external signal. Its built-in multimeter can be used for checking and simulation of programmable transconductance or as a current amplifier.
The calibrator includes many other features which facilitate easy use, for example display of output uncertainty (%), deviation, calibration and testing procedures etc. The calibrator's control and indication is available on large TFT color display, which provides all necessary indications. The calibrator and its options, are easily controlled via a clear menu structure. Frequently used functions are assigned to direct-control keys. The calibrator comes with standard IEEE488 GPIB and RS232 interfaces, which allows full control from a PC.
Data Sheets
Specifications
AC/DC Current
| Range Arms | % of value + % of range |
Maximum Voltage | % of value + % of range |
% of value + % of range |
Maximum Voltage full spec | Maximum Voltage full spec |
|---|---|---|---|---|---|---|
| Arms | DC | 40-70Hz | 15-40Hz 70-1000Hz |
15-400Hz | 400-1000Hz | |
| 0.008000-0.300000 | 0.0175 + 0.01 | 8V | 0.0175 + 0.01 | 0.025 + 0.02 | 5.5 V | 3.5 V |
| 0.300001-1.00000 | 0.0175 + 0.01 | 8V | 0.0175 + 0.01 | 0.025 + 0.02 | 5.5 V | 3.5 V |
| 1.00001-2.00000 | 0.0175 + 0.01 | 8V | 0.0175 + 0.01 | 0.025 + 0.02 | 5.5 V | 3.5 V |
| 2.00001-5.00000 | 0.0175 + 0.01 | 5V | 0.0175 + 0.01 | 0.025 + 0.02 | 3.5 V | 3.5 V |
| 5.0001-10.0000 | 0.021 + 0.015 | 5V | 0.021 + 0.015 | 0.04 + 0.02 | 3.5 V | 3.5 V |
| 10.0001-30.0000 | 0.025 + 0.015 | 5V | 0.025 + 0.015 | 0.05 + 0.02 | 3.5 V | 3.5 V |
| 30.0001-60.000 | 0.025 + 0.015 | 5V | 0.025 + 0.015 | 0.05 + 0.02 | 3.5 V | 3.5 V |
| 60.0001-120.000 | 0.025 + 0.015 | 5V | 0.025 + 0.015 | 0.05 + 0.02 | 3.5 V | 3.5 V |
Multimeter
| Function | Range | % of value + % of range |
|---|---|---|
| AC voltage < 1kHz | 0-20V | 0.02% + 0.02% |
| AC voltage > 1kHz | 0-20V | 0.05 % + 0.05 % |
| DC voltage | ±20V | 0.01 % + 0.01 % |
| AC current < 1kHz | 0 - 200 mA | 0.02 % + 0.02 % |
| AC current > 1kHz | 0 - 200 mA | 0.05 % + 0.05 % |
| DC current | ±200 mA | 0.01 % + 0.01 % |
| frequency | 1 Hz - 10 kHz | 0.005 % + 0.00 % |
- 25 turn copper current cable with active cooling for calibration of AC/DC clamp ammeters up to 3000A
- Can be used with MC151 or MC133C in high current mode.
- Mounted with two 12V fans for active cooling during high load situations.
- Additional uncertainty 0.3% applies to DC as well as AC current up to 100Hz.
- Datasheet - option 151-25
