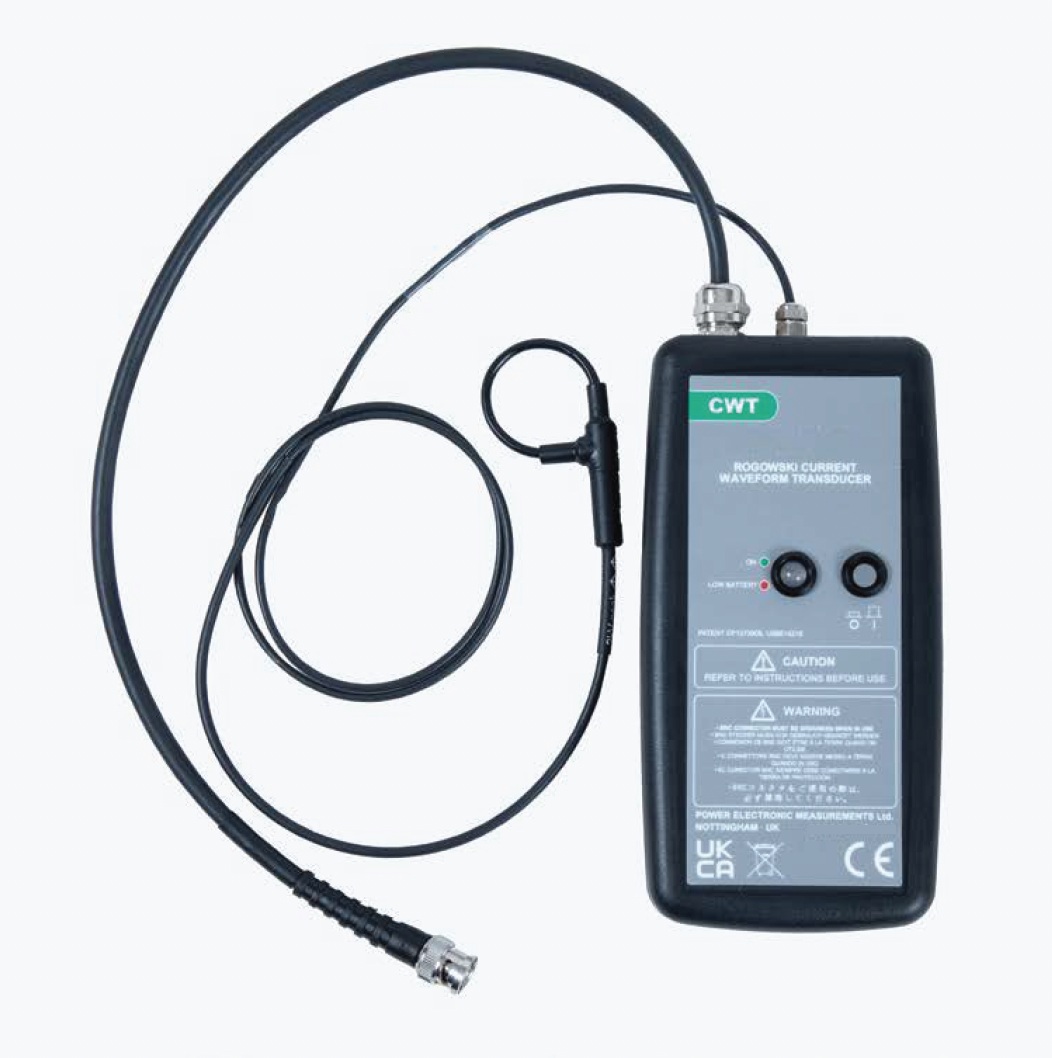

CWTMini50 HF - High Frequency Current Probe 50MHz
Miniature High Frequency Rogowski Coil Current Probe
The CWT Mini 50 High Frequency current probe series introduces a new high performance Hybrid Rogowski Coil sensor thin enough (typical cross section 3.5mm) to fit in very confined spaces.
The CWT Mini 50 High Frequency current probe series utilize a high performance Rogowski Coil sensor thin enough (typical cross section 3.5mm) to fit in very confined spaces - often between the legs of a semiconductor power switching device. With high frequency bandwidths up to 50MHz, the CWT Mini50 HF Rogowski coil is ideal for measuring switching transients or pulsed currents starting at 300mA up to 30kA in power electronic equipment. The CWT Mini 50HF Rogowski probe is a clip around flexible coil current probe based on the Rogowski principle to achieve high bandwidth measurement and faithful conversion from current to voltage, intended for use with oscilloscopes, data loggers, power meters and power analyzers. Available with a 100mm or 200mm length clip-around coil, ensuring easy current monitoring even where access is limited.
The New CWT Mini 50HF combines an innovative screened Rogowski coil providing excellent measurement of GaN switching losses and immunity to interference from fast dv/dt transients or large 50/60Hz voltages and an extended 50MHz (-3dB) high frequency bandwidth for 100mm coils. The coil has a wide operating temperature from -40°C to +125°C and is available with 5kV peak insulation, 4.5mm thickness.
The CWT Mini HF Rogowski coil range from Powertek, combines state of the art performance of the CWT ac current probe but features a miniature clip-around split core Rogowski coil capable of monitoring currents in the most difficult to reach areas of a circuit.
- An electrostatic shielded Rogowski coil providing excellent immunity to interference from fast local dV/dt transient or large 50/60Hz voltages
- Extended (-3dB) high frequency bandwidth 50MHz for a 100mm coil
- Peak di/dt capability up to 100kA/µs
- Wide operating temperature from -40°C to +125°C
- 4.5mm thick Rogowski coil with 5kV peak insulation
Full specifications for the CWT Miniature HF Rogowski coil range are available in CWTmini-50HF Datasheet
Available kA Peak Current ratings 0.03, 0.06, 0.15, 0.3, 0.6, 3.0, 6.0 kA
Sensitivity set to give ± 6 volts peak output (e.g. 1.0mV/A for ± 6000A peak)
Typical Bandwidth 0.1Hz to 50MHz
Accuracy typically 2% of reading
DC offset no greater than 2mV
Thin flexible clip-around split core coils
- Coil lengths of 100 and 200mm
- Rogowski Coil cross sectional diameter 4.5mm for 5kV isolation
- Peak voltage isolation 5kV
Cable length - The cable connecting the current sense coil to the integrator box is available in lengths from 1m, 2.5m or 4m.
Integrator power supply
Either:
-
Battery 4 AA 1.5V standard alkali batteries typical life 25hrs plus- 2.1mm/2.5mm socket for 12 to 24V DC input (batteries inoperative when DC supply present)
Or:
- Rechargeable NiMH Batteries typical life 10hrs plus- 2.1mm/2.5mm socket for 12 to 24V DC input (batteries trickle charged when DC supply present) An AC/DC adapter is included for use with the CWT details can be found in:
CWT Mini 50 HF Rogowski Coil Models and Specifications
| Model | Sensitivity (mV/A) |
Peak current*1 (kA) |
Noise max*2 (mV pk-pk) |
Droop %/mS |
LF (3dB) bandwidth typ. (Hz) FL |
Peak di/dt kA/µs |
HF (3dB) bandwidth*3 MHz |
|
|---|---|---|---|---|---|---|---|---|
| Coil Length 100mm | Coil Length 200mm | |||||||
| CWTMini50HF 015 | 200 | 0.03 | 20 | 85 | 150 | 2.0 | 50 | 23 |
| CWTMini50HF 03 | 100 | 0.06 | 18 | 78 | 100 | 4.0 | 50 | 23 |
| CWTMini50HF 06 | 50 | 0.12 | 12.0 | 70 | 75 | 8.0 | 50 | 23 |
| CWTMini50HF 1 | 20 | 0.3 | 9.0 | 53 | 50 | 20 | 50 | 23 |
| CWTMini50HF 3 | 10 | 0.6 | 15 | 11 | 12 | 40 | 50 | 23 |
| CWTMini50HF 6 | 5.0 | 1.2 | 15 | 5.5 | 6.0 | 80 | 50 | 23 |
| CWTMini50HF 15 | 2.0 | 3.0 | 12.0 | 2.8 | 3.0 | 80 | 50 | 23 |
*1. Higher current ratings are available, CWT30 Peak current 6kA, etc
*2. Noise max. is the internally generated noise which is at a maximum at LF(-3dB) bandwidth
*3. The High Frequency HF(-3dB) is quoted for a 2.5mm cable between coil and integrator
TYPICAL ACCURACY
(full scale)
Calibrated to UKAS ±0.2% with conductor central in the loop
Variation with conductor position in the coil loop typically ±2%
TYPICAL LINEARITY
±0.05% (full scale)
ABSOLUTE MAXIMUM VALUES OF di / dt (kA/µs)
(value must not be exceeded)
PEAK
PEAK 100kA/uS
All models 1.2kA/uS
Safe peak working voltage to earth. 5kV coils are flash tested at 8kVrms/60Hz for 60 seconds. Information about the continuous use of coils at high voltage can be obtained from Powertek
For de-rating due to temperature cycling please consult Powertek
1m, 2.5m or 4m.
Max cable length for CWT015 is 1m, CWT03 is 1.5m, CWT06 is 2.5m
All CWT units are supplied with four AA Lithium batteries (typical life 90 hours) and a 12V-24Vdc input socket and a power adapters (AC to 12Vdc), to power the CWT from 230Vac or 115Vac. Specify adapter type, 230V or 115 V
Rechargeable batteries, option R, are available. (batteries are charged whenever external +12V dc supply is present). Typical recharge time 40 hrs, typical life 8 hrs.
(mm)
CWT Mini HF 06
R-Rechargeable
R
(custom length available)
2.5
(custom length available)
100
5
i.e. A CWTMini50HF, peak current 120A, Rechargeable battery, 2.5m cable, 100mm circumference coil, 5kV peak coil, 4.5mm thick
All units are supplied with user manual, factory calibration, hard carry case, 0.5m BNC-BNC output cable
If you have any queries regarding the CWT or require specifications outside our standard ranges please do not hesitate to contact us.
