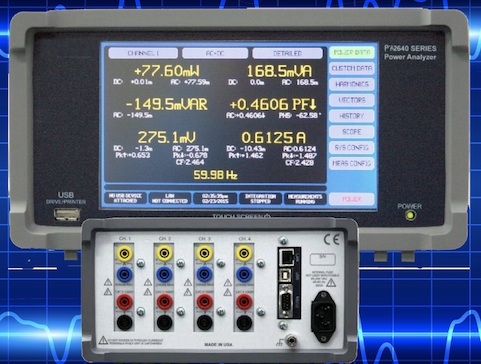

PXe-PA900 Three Phase Power Analyser
True AC/DC Power Analysis over a wide range of loading conditions from DC to 2MHz. Choose any input configuration from 1 to 4 channels, ideal for watts loss and efficiency measurements generation of performance reports
Product Features
- PXe-PA900 Power Analyzer used to perform fast Efficiency Measurements on Three Phase Input / Three Phase Output power conversion devices
- Offers multiple simultaneous measurement channels:
- Comprehensive measurement of Vrms, Vpk, Vcf, Arms, Apk, Acf, Ainrush, Funds, PF, W, VA, VAr, THD, THD+N, V Harmonics, A Harmonics
- Allows input/output efficiency inc power loss for testing UPS, variable speed drives, electric lighting and power supplies
- Ideal for Avionic power systems 400Hz
- Accurate with all waveform types and distorted waveforms
- DC-1MHz bandwidth ensures faithful measurement with all power waveform types
- 0.03% basic accuracy
- Colour display with Graphs/Bargraphs/Plots/Data logging
- PC software available, including Labview and PLC Siemens SIMATIC S7-1200 for production control
- 1mV-8Vrms with 100mA drive current, isolated reference and signal inputs, range 10uV to 500Vpk, DC - 2MHz
Description
The PXe-PA900 is a three phase power analyzer & harmonics analyzer, additionally it is three single phase power analyzers in a single chassis with a single user interface. The PXe-PA900 Harmonics & Power Analyzers may have up to 4 channels installed, which may be any combination of channel cards and with any combination of available current input options. Multiple PXe-PA900 Harmonics & Power Analyzers can be Ethernet connected to make simultaneous multi channel measurements, useful where power analyzer measurements are needed in multiple locations, where close proximity to the load is required.
Channels may be individually configured, in effect as 3 power analyzers in the same chassis.
Each PXe-PA900 channel can be independently configured for 1ph, 2ph, 3ph 3W, 3ph 4W, multi-channel wiring configurations, signal filtering, default measurement coupling, display results smoothing and efficiency grouping. Voltage and current input channels may be optionally synchronized to each other.
The PXe-PA900 series interface with a Siemens S7 PLC, allowing for automated system using a power analyzer. For Example the s7 PLC can be programmed to perform an action or sequence depending on what conditions the PXe-PA900 Power Analyser has measured. Typical examples are over current, over power, gross imbalance or when lost phase is measured. The PLC can shutdown a system in a controlled sequence or control-command other equipments - like alert production, conveyor speed, update quality reporting, mark batch nos, alarm etc
For full accuracy performance and graphs refer to PXe-PA900 Datasheet pdf
- Installation Category II; 85-264Vrms, 45 to 65Hz, 40VA max
- Internally fused with a non-user serviceable fuse
Valid for any V terminal to PXe-PA900 chassis ground; any A terminal to PXe-PA900 chassis ground; and between V and A terminal
- >1GΩ ∥ < 30pF
- 4500Vpk max without damage
- 2500Vrms for < 1s without damage
- 1000Vrms max continuous rated working voltage (CAT I/II)
- 600Vrms max continuous rated working voltage (CAT I/III)
- 300Vrms max continuous rated working voltage (CAT IV)
