Static Frequency Converters for Maritime, Avionics, Industrial and Defence Applications
What is a Static Frequency Converter?
The name suggests a Static Frequency Converter or SFC, changes from one power frequency to another, usually at a fixed installation. In addition, most SFCs will allow a change from one voltage to another. Applications include maritime docks, avionics testing, airport ground power and appliance testing.
Start discussion about your SFC needsThe Powertek static frequency converters serve as a popular frequency changer: AC Power 50Hz to 60Hz, 60Hz to 50Hz or 50/60Hz utility power to 400Hz. Specialist frequency conversions are possible 16.67Hz/25Hz/100Hz. Our Ptk-33000, Ptk-FCM and Ptk-SFC series static converters utilize a built-in rectifier, converting incoming AC power into DC, then inverting the DC to the required frequency and voltage based on IGBT switching and a built-in isolation transformer. The Ptk-FCM series has many advantages, making them ideal for export product testing or operational test of imported equipment helped with their command and control interfaces. Applications such as the testing of military/avionics equipment, typically 400Hz electronics operated in aircraft, where maximum and minimum conditions are simulated. For aircraft ground power, fixed wing and helicopter applications, GPU or a military vessels, a variety of formats are possible including dual o/p combinations 28Vdc/120Vac 3ph 400Hz GPUs
Approvals and conformance: DFS400: Specification for 400 Hz aircraft power, ISO 6858:Aircraft ground support electric supplies, MIL-STD-704F: Aircraft electric power characteristics, MH/T6018 Aircraft ground solid state power unit, EN61000-6-4 Electromagnectic compatibility generic emission, EN61000-6-2 Electromagnectic compatibility generic immunity

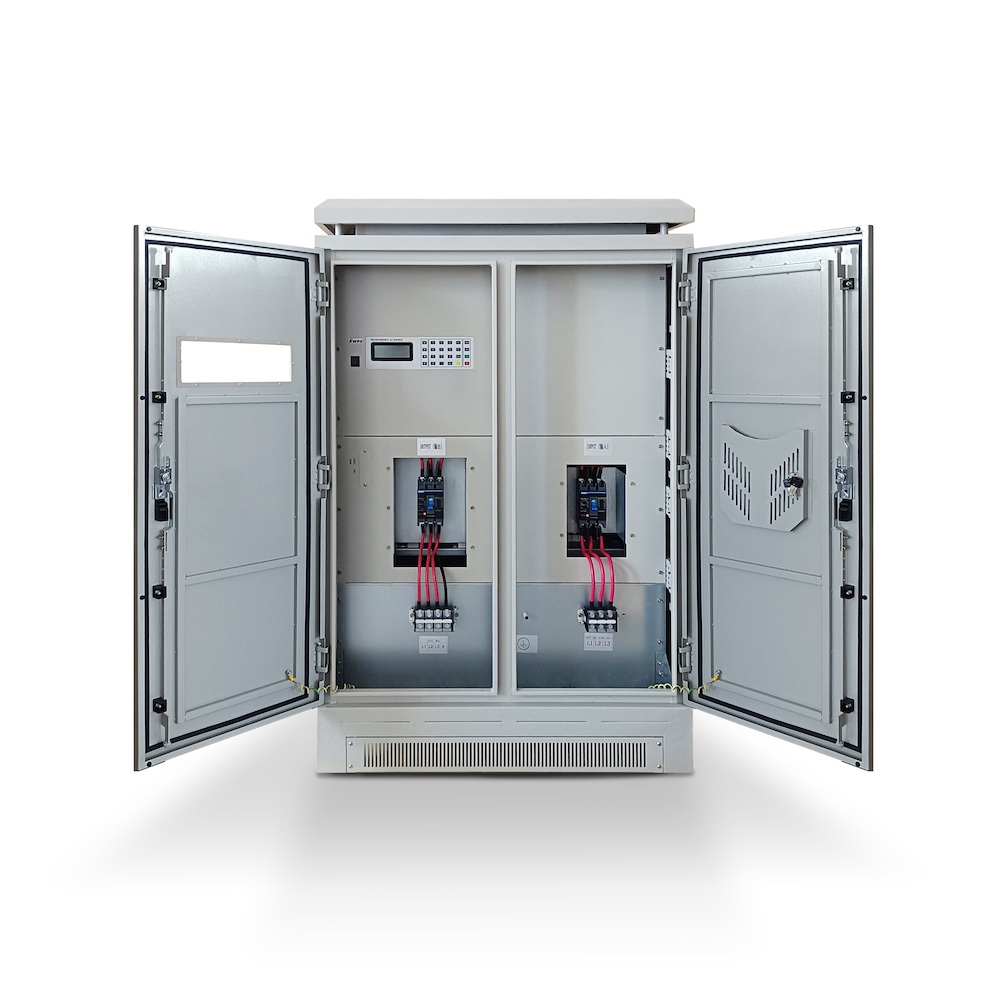

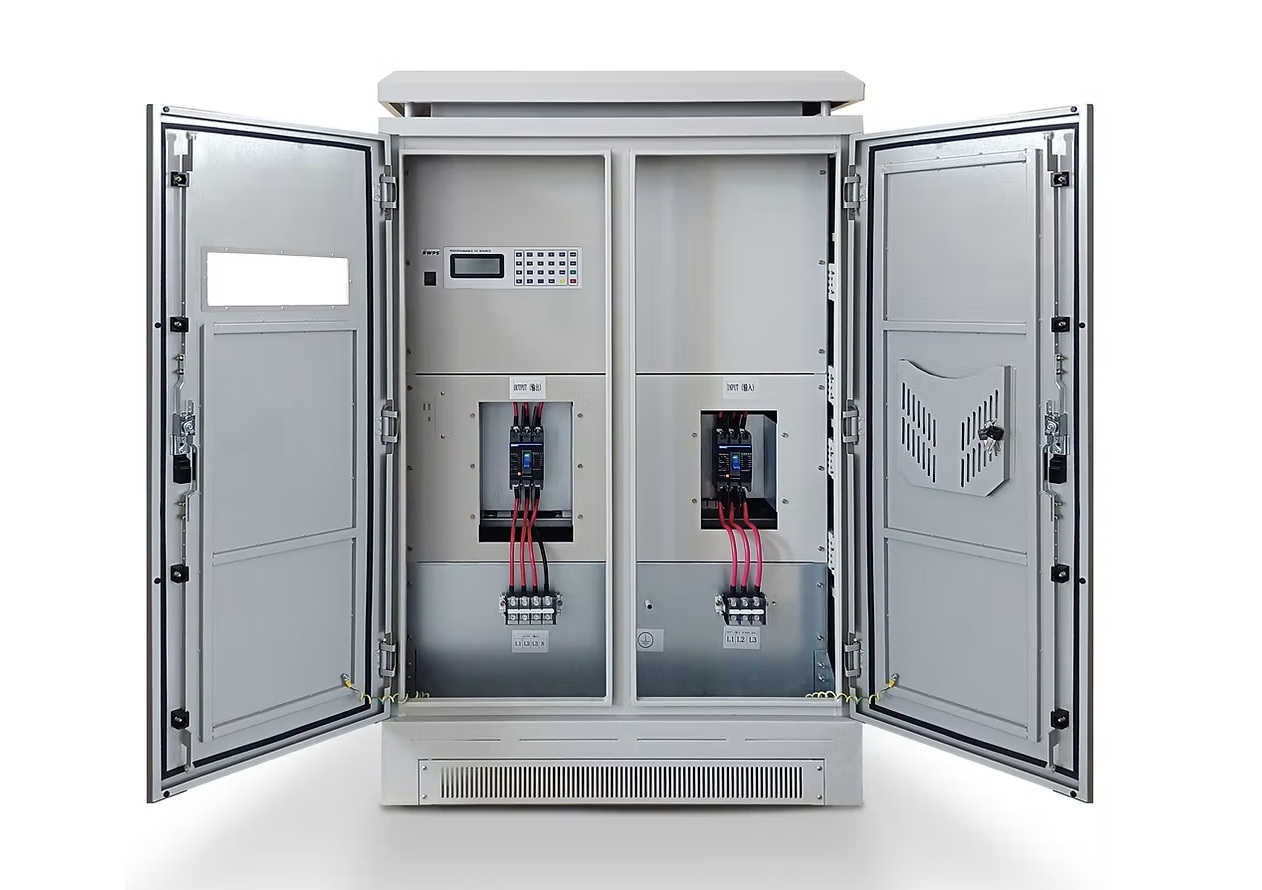

Multi Cabinet 500kVA systems

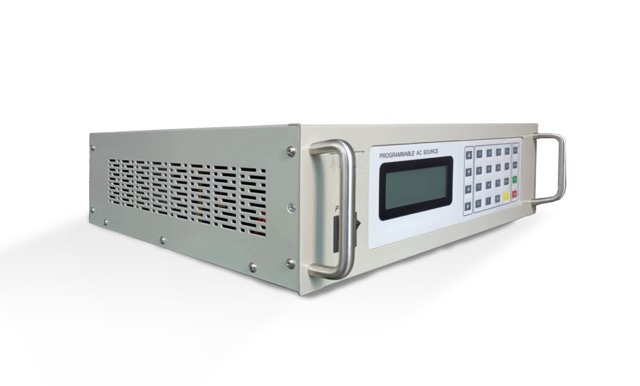

PTK 19" Rack Mount Static Frequency Converter
The PTK-19" rack SFC provides static ac power in a standard 4U high rack format allowing interchangeable replacement. Optional output control from HMI and interfaces
Read more

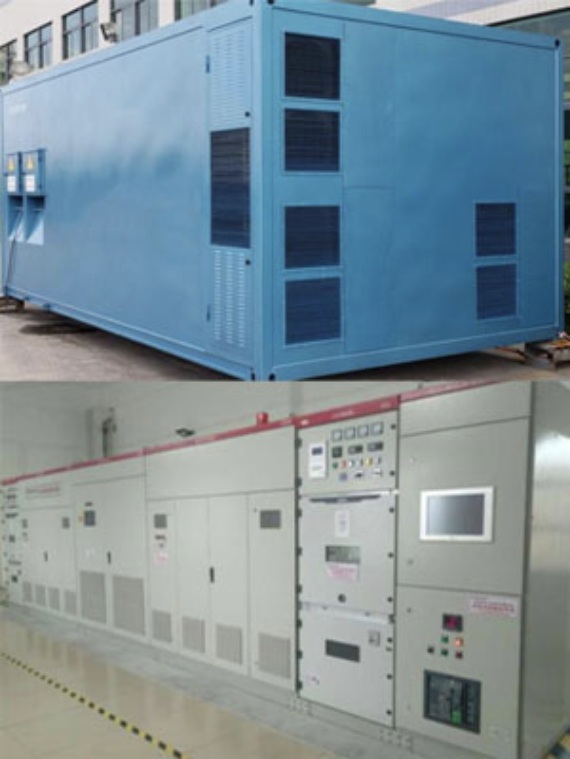

Maritime Three Phase in/out static frequency converters
PTK maritime static frequency converters provide a controlled AC power supply for shipboard equipment, marine machinery and shore-to-ship applications where the available electrical supply does not match the requirements of the connected load
Read more

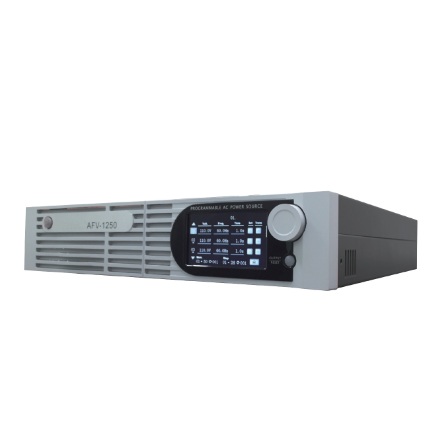

PXe-AFV-P Programmable Rack-Mount AC Source
View our range of PXe-AFV-P static frequency converters. This is a programmable AC power source with DC output capability and precision AC measurement. Available in four power levels 600VA, 1250VA, 2500VA and 5000VA, providing clean sine outputs with distortion less than 0.3% at 50/60Hz. The series provides 0–310 VAC output and a frequency range of 40–1000 Hz, making it suitable for commercial, defence and aerospace applications. Test sequences can be stored, while transient generation functions simulate voltage surges, drops and frequency disturbances. With peak current capability of up to 4.5 times the maximum rated current, it is ideal for inrush current testing. Measurement functions include RMS voltage and current, true and apparent power, power factor, crest factor and reactive power. The AC source can be remotely controlled via USB, RS232/RS485, LAN, optional GPIB or analogue control. Control software, Modbus and LabVIEW drivers are also available for easy programming and remote operation.
Read more
PTK-FCM-11000 Precision Constant Current AC Power Supply
The PTK Series Precision AC Constant Current Power Supply is an easy-to-use precision low-voltage, stable high-current AC source for calibration intended for laboratory, production and electrical test applications. It uses linear amplification technology to produce a low-distortion sine wave with accurate programmable voltage, current and frequency control.
Read more

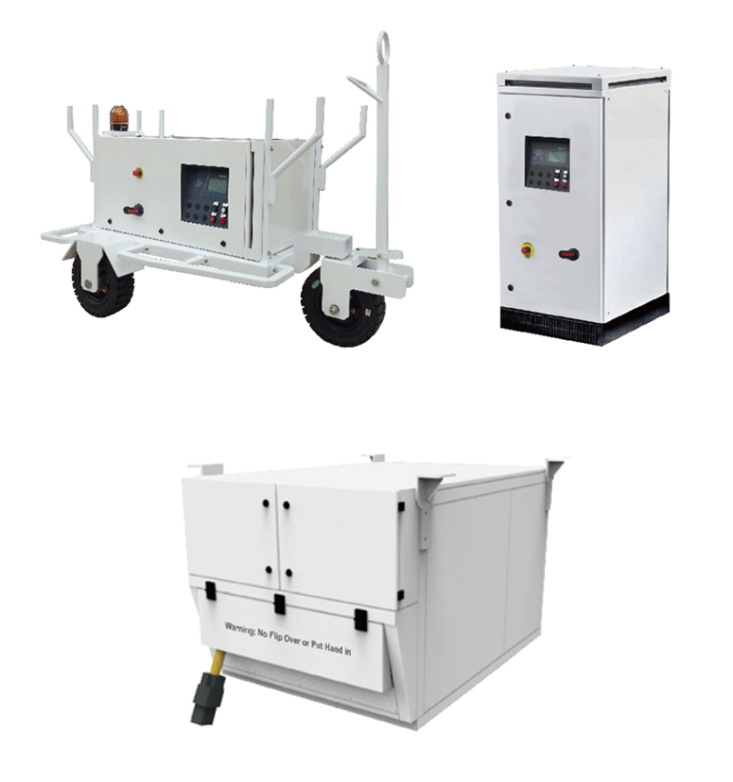

Aircraft GPU 30kVA-450kVA Three Phase in/out static frequency converter Ground Power Units
View our range of Aircraft GPU 30kVA-450kVA Three Phase in to 400Hz out static frequency converter portable GPUs available in cart, truck and cabinet formats
Read more

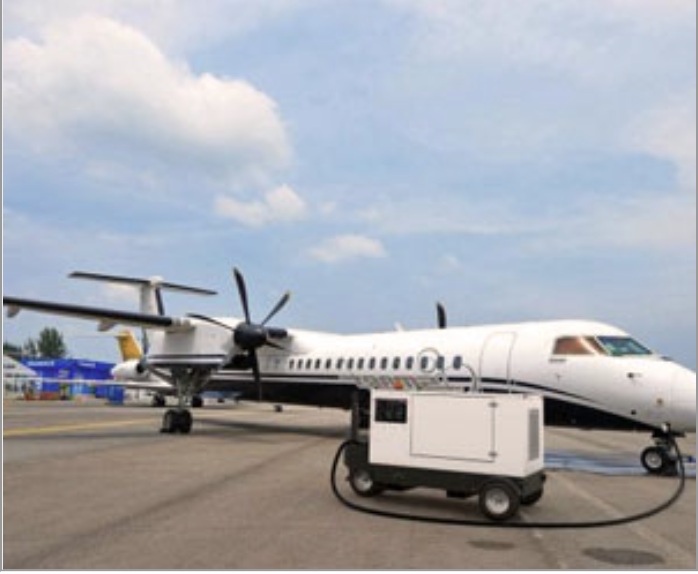

Aircraft GPU Combo [400Hz and DC] 60kVA-200kVA Three Phase output inc 28Vdc static frequency converters Ground Power Units
View our range of Aircraft GPU 30kVA-450kVA Three Phase 400Hz 115Vac and 28Vdc DC out static frequency converter GPUs
Read more

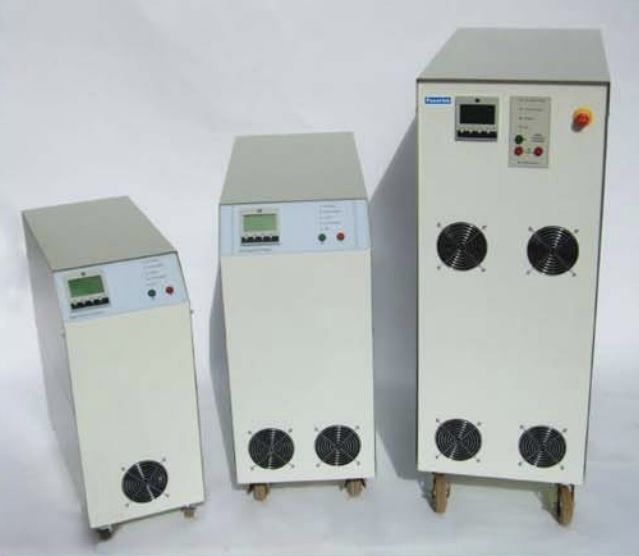

PX11000 and PX33000 single and three phase static frequency converters
View our European distributor's range of PX11000 single phase and PX33000 three phase static frequency converter SFC products ranging from 1KVA to 250kVA. Users can also remotely control the AC source via standard interfaces of USB, RS232/RS485, LAN or optional GPIB and analog control. Control software, Modbus and LabVIEW drivers are available for easy programming and remote control
Read moreView our European stockist-distribution of Static Frequency Converter products
Legacy Static Frequency Converters - Supported by Powertek
Failsafe SFC Range: Able static frequency converters
View our range of 1kVA-5kVA static frequency converters, formerly sold under the Failsafe Brand. Powertek provides training, service, support, repairs and maintenance plans for these popular legacy SFC products along with SFC replacement options
SFC 2000 SFC 3000 SFC 4000 SFC 5000 SFC 6000Learn more about our Static Frequency Converters
