MC9010+ Multifunction AC and DC Power and Energy, Resistance, Capacitance, TC and RTD Calibrator

MC9010+ with high precision 10 ppm basic accuracy

Multifunction ac dc calibrator MC9010+ is a precision calibration source, with key features like voltage, current, power, energy along with thermocouple TC and RTD simulation.

Read more Get a quote

MC9010+ Multifunction Calibrator
MC9010+ multifunction calibrator is available as bench-top or 19" rack housing

A precision 10 ppm AC/DC multifunction [multi-product] calibrator for certification of 6.5 digit multimeters, power analyzers, power meters and kWHr electric energy meters. The MC9010+ implements a modular design meaning the MC9010+ can be further customized to calibrate oscilloscopes, insulation testers, ac sources and transducers

  • 10 ppm accuracy
  • 400 MHz and 1.1 GHz scope options
  • Power quality functions, voltage from current
  • Metcal Compatible, extensive range of drivers availble
  • A versitile precision source suited to accredited calibration labs certifying high accuracy multimeters, similar equipments and sensors

  • High accuracy multimeters
  • Temperature probes and simulation
  • Scopes 400 MHz and 1.1 GHz scope options
  • Frequency counters and related equipments
  • Power quality functions: voltage, current, VA, VAr, W, PF and degrees
  • Power Analysis and Power Quality
  • Description

    Multifunction ac dc calibrator MC9010+ is a precision calibration source, with key features like voltage, current, power, energy along with thermocouple TC and RTD simulation. Multifunction calibrator MC9010+ is designed as universal calibration tool for electrical calibration laboratories, covering most of their workload like multimeters, clamp meters, ohm meters, power meters and power analysers, energy meters, transducers, insulation testers, process meters, scopes and many others. High load capacity of voltage output (up to 50 mA) allows for calibration of high-consumption analogue meters. Installed harmonic and non-harmonic shape signals allow for testing meter sensitivity to distorted signals by a signal with various crest factor. Advancing from previous MC14x calibrator series, MC9010+ can now calibrate even 400 MHz and 1.1GHz scopes, 1.5 kV insulation testers and 287 kW power meters. On the other hand we kept all the popular functions including complete transducer and external sensor calibration (strain gauge, pressure, torsion, force, etc.) using built-in multimeter, automatic uncertainty calculation, remote control and easy recalibration.

    MC9010+ Front Display
    MC9010+ Front Panel Display
    MC9010+ output/input terminals
    MC9010+ output/input terminals

    Basic Parameters

    Basic function of the calibrator is the generation of calibrated DC/AC voltage in the range from 0µV to 1050V and DC/AC current in the range from 0 to 30.0A. Using a 50-turn coil the current range can be extended to 1025A. The best accuracy of the calibrator on DC voltage ranges is 35ppm, on AC voltage ranges 250ppm, on DC current ranges 130ppm and on AC current ranges 550ppm. Maximum frequency range is from 20Hz to 100kHz for harmonic output waveform. The calibrator is equipped with a function generator for periodic non-harmonic signals with defined crest factor, making it possible to test sensitivity of multimeters to distorted signals. In addition the calibrator simulates resistance and capacitance, the resistance range from 0.0 Ohm to 1100MOhm and capacitance from 800pF to 120mF can be simulated exceeding the required precision for calibration of common hand-held multimeters. Basic accuracies are resistance ranges 150ppm and capacitance ranges 0.1%.

    Frequency function of the calibrator makes it possible to generate a square wave signal with adjustable and calibrated duty ratio, frequency and amplitude in range from 1mV to 10V in the frequency band up to 1100MHz. In the mode HF the square wave signal up to 20MHz with a very low rise-time can be generated. The frequency functions are suitable for the calibrations of corresponding frequency ranges of the multimeters and for calibration of the channel sensitivities and time bases of the oscilloscopes as well.

    For calibrations of DC and one-phase AC power-meters and energy meters, the power – energy mode is determined. Output voltage can be set up to 240V and output current up to 30.0A with the power factor in range from -1 to +1 in the frequency band from 40Hz to 400Hz. Current capability of the voltage output is 30mA. It allows calibration of analogue power-meters which have higher current draw. For calibrations of the thermometers and temperature regulators, the function of simulation of temperature sensors is determined. Calibrator is able to simulate all common used Pt and Ni resistance sensors and TC sensors of the R, S, B, J, T, E, K and N types as well. Compensation of the TC cold junction is made either by entering value from the keyboard, or automatically by measuring the ambient temperature with Pt-100 sensor. The precision of the simulated resistance and TC sensors depends on set value and type of the sensor. For resistance sensors uncertainty band is in the range from 0.04°C to 0.5°C, for TC sensors from 0.4°C to 4.0°C.

    Built-in multimeter

    The MC9010+ internal multimeter has a basic capability to measure DC current to 20mA, DC voltage to 10V, resistance to 2kOhm and frequency to 15kHz as standard. With accuracy of 10ppm it enables measurement of output signals of various types of transducers. With external TC or resistance temperature sensors, temperature can be scaled, as can external strain gauge sensors, for pressure, torsion, strength, etc. actual units can be measured and displayed.

    Tester

    Calibrator can be used in simultaneous mode, i.e. selected output signal is generated and the response of the device under test is measured at the same time by internal multimeter. Programmable capability of the calibrator enables setting of 10 steps defined by output signal function and output value on source side and awaiting response of DUT measured by internal multimeter including allowed limits of the DUT. The testing can run automatically.

    Ease of use

    MC9010+ Calibrator is equipped with a number of other functions which make its use easier. Among them belong possibility to set relative deviations from the actual value of the selected output signal, displaying of the output signal uncertainty, internal calibration procedure and others. Concept of the calibrator's control and indication uses a large area luminescence display on which all necessary information is concentrated. The control is perform by selection from the menu. Moreover, frequently used functions have firmly assigned keys with direct control. Normally, the calibrator is equipped with GPIB bus (IEEE-488), LAN, USB and an RS-232 serial port making it possible to be controlled by personal computer.

    The calibrator can be included into POWERTEK WinQbase/CALIBER software calibration systems.

    MC9010+ calibrator is derived from previous successful models MC140/MC142. Compared to MC140/MC142 models the new MC9010+ offers extended ranges and higher accuracy.

    Specifications

    DC/AC voltage sine output
    Voltage Range: 0 to 1040V
    Frequency range: 15Hz to 300kHz
    Resolution: 6½ dig.
    range % of value + µV % of value + µV % of value + µV % of value + µV % of value + µV
    DC 15Hz - 10kHz 10kHz - 30kHz 30kHz - 100kHz 100kHz - 300kHz
    0mV - 20mV 0.003 + 1.5 0.08 + 8 0.1 + 20 0.2 + 25 0.5 + 150
    20mV - 200mV 0.0015 + 1.5 0.028 + 8 0.035 + 15 0.06 + 25 0.05 + 300
    200mV - 2V 0.0012 + 5 0.0165 + 90 0.025 + 100 0.06 + 200 0.5 + 800
    2V - 20V 0.0010 + 35 0.016 + 700 0.025 + 1m 0.05 + 1.5m --
    20V - 100V 0.0015 + 150 0.02 + 5m 0.03 + 12m -- --
    100V - 280V 0.0015 + 400 0.02 + 10m 0.03 + 40m -- --
    280V - 1050V 0.002 + 3.5m 0.03 + 15m -- -- --

    Specifications

    DC/AC current sine output
    Current range: 0 to 30.0A
    Frequency range: DC, 15Hz to 10kHz
    Resolution: 6½ dig.
    range % of value + µA % of value + µA % of value + µA % of value + µA
    DC 15Hz - 1kHz 1kHz - 5kHz 5kHz - 10kHz
    0µA - 200µA 0.02 + 20n 0.125 + 80n 0.30 + 150n 0.5 + 200n
    200µA - 2mA 0.015 + 50n 0.085 + 200n 0.15 + 500n 0.4 + 600n
    2mA - 20mA 0.01 + 600n 0.04 + 2 0.1 + 4 0.2 + 6
    20mA - 200mA 0.01 + 5 0.04 + 20 0.1 + 50 0.2 + 100
    200mA - 2A 0.016 + 50 0.048 + 100 0.1 + 500 --
    2A - 20A 0.025 + 500 0.055 + 2m -- --
    20A - 30A 0.1 + 750 0.12 + 5m -- --
    *I is set current in A. Additional accuracy with Opt.140-50 Current coil is 0.3%. Multiplying coefficient is 25 or 50.
    **Maximal period for continuous current 30.0A is 30s. Maximal period for continuous current 20A is 60s.

    Function Shape (non-harmonic signals)

    Voltage range:
    1mV to 200V
    Current range:
    100uA to 2A
    Wave form:
    square positive, negative, symmetrical, saw A, B, triangle limited sin
    Peak value accuracy:
    0.3% + 50uV
    Displayed values:
    peak, calculated rms
    Frequency range:
    to 1000Hz for voltage, to 120Hz for current
    The lowest frequency for square waveforms is 0.1Hz, for other waveforms 20Hz.

    Resistance and Capacitance

    Resistance range:
    0 to 1000 MΩ
    Continuous Range(Ω) % of value + Ω % of value + Ω
    4W 2W
    0 - 10 0.03 + 2m 0.03 + 32m
    10 - 33 0.025 + 2m 0.025 + 32m
    33 - 100 0.015 + 3m 0.015 + 33m
    100 - 1000 0.01 + 3m 0.01 + 33m
    1 - 10k 0.009 + 30m 0.009 + 60m
    10 - 100k 0.009 + 300m 0.009 + 330m
    100 - 330k 0.01 + 3 0.01 + 3
    330 - 1M 0.015 + 3 0.015 + 3
    1 - 3.3M -- 0.015 + 30
    3.3 - 10M -- 0.02 + 30
    10 - 100M -- 0.2 + 300
    100 - 330M -- 0.3 + 3k
    330 - 1100M -- 1 + 10k
    Capacitance range:
    800pF to 120mF
    Resolution:
    4 dig.
    Please check the bold table cells below. They did not line up on the original

    Function Frequency

    Total frequency range:
    0.1Hz to 20MHz
    Resolution:
    6 dig.
    Accuracy of frequency:
    0.005 %
    Frequency function modes:
    PWM, fmax = 400kHz, square waveform with calibrated ratio and amplitude
    PWM mode (0.1 Hz to 100 kHz):
    HF, fmax = 20MHz, square waveform with calibrated frequency and amplitude
    Voltage Range % of value + µV
    1mV - 20mV 0.2 +50
    20mV - 200mV 0.1 + 50
    200mV - 2V 0.1
    2V - 10V 0.1

    HF mode (0.1 Hz to 20 MHz):

    Output impedance:
    50Ω
    Output waveform:
    square symmetrical
    Amplitude:
    4V pk-pk
    Range of amplitude setting:
    0, -10, -20 dB, -30dB +/- 1dB
    Amplitude accuracy:
    10%
    Rise time:
    < 5ns

    RTD temperature sensor simulation

    Type °C °C °C °C °C °C °C
    -200 - -190 -190 - -100 -100 - 0 0 - 250 250 - 460 460 - 630 630 - 800
    Pt3850 Ro:100Ω 0.05 0.06 0.07 0.09 0.12 0.14 0.18
    Pt3851 Ro:100Ω 0.05 0.06 0.08 0.10 0.12 0.15 0.18
    Pt3926 Ro:100Ω 0.06 0.06 0.08 0.10 0.12 0.15 --
    Pt3916 Ro:100Ω 0.06 0.06 0.08 0.10 0.12 0.15 --
    Pt385 Ro:200Ω 0.04 0.05 0.08 0.09 0.12 0.14 --
    Pt385 Ro:500Ω 0.04 0.04 0.05 0.08 0.12 0.15 --
    Pt385 Ro:1000Ω 0.03 0.04 0.05 0.09 0.11 0.14 --
    Type -80 - 0 0 - 100 100 - 260
    Ni 120 0.05 0.08 0.14

    TC Temperature Sensor Simulation

    R range [°C] -50 – 100 100 - 400 400 - 1000 1000 - 1767
    accuracy [°C] 0.96 0.55 0.44 0.39
    S range [°C] -50 - 100 100 - 250 250 - 1400 1400 - 1767
    accuracy [°C] 0.9 0.56 0.49 0.40
    B range [°C] 400 - 800 800 - 1000 1000 - 1500 1500 - 1820
    accuracy [°C] 0.9 0.54 0.48 0.41
    J range [°C] -210 - -100 -100 - 150 150 - 700 700 - 1200
    accuracy [°C] 0.3 0.26 0.21 0.18
    T range [°C] -200 - -100 -100 - 0 - 100 100 - 400
    accuracy [°C] 0.3 0.26 0.21 0.18
    E range [°C] -250 - -100 -100 - 280 280 - 600 600 - 1000
    accuracy [°C] 0.45 0.23 0.19 0.19
    K range [°C] -200 - -100 -100 - 480 480 - 1000 1000 - 1372
    accuracy [°C] 0.35 0.25 0.23 0.24
    N range [°C] -200 - -100 -100 - 0 0 - 580 580 - 1300
    accuracy [°C] 0.45 0.30 0.26 0.23
    M range [°C] -50 - 50 50 - 100 100 - 470 470 - 1410
    accuracy [°C] 0.25 0.22 0.21 0.20
    C range [°C] 0 - 100 100 - 280 280 - 1370 1370 - 2315
    accuracy [°C] 0.37 0.34 0.34 0.47
    D range [°C] 0 - 100 100 - 280 280 - 1830 1830 - 2315
    accuracy [°C] 0.45 0.37 0.34 0.47
    G2 range [°C] 100 - 200 200 - 430 430 - 2080 2080 - 2315
    accuracy [°C] 0.72 0.49 0.35 0.39

    Built-in Process Multimeter

    Function Range Accuracy (%) Resolution/Range
    DC voltage 12mV 0.005 + 3µV 0.01µV
    120mV 0.005 + 5µV 0.1µV
    1.2V 0.005 + 50µV 1µV
    12V 0.005 + 500µV 10µV
    DC current 100µA 0.02 + 20nA 1nA
    1mA 0.02 + 100nA 10nA
    2.4mA 0.015 + 800nA 100nA
    24mA 0.015 + 800nA 100nA
    Resistance 2kΩ 0.02 + 10mΩ 1mΩ
    20kΩ 0.02 + 50mΩ 10mΩ
    Frequency 1Hz - 100kHz 0.005 10µHz - 0.1Hz
    TC Temperature -250 - 2315°C 0.2 - 1°C TC Depends
    RTD Temperature -200 - 800°C 0.03 - 0.42°C Pt Depends

    General data

    Warm up time:
    60 min
    Working temperature range:
    23 ± 10°C
    Stocking temperature range:
    0 to 40°C at RH bellow 80 %
    Reference temperature:
    23 ± 2°C
    Dimensions:
    450 x 480 x 150 mm
    Weight:
    23kg
    Power line:
    115/230 V

    Accessories

    Power line cable
    1 pc
    Operation manual, CD
    1 pc
    Option 10/11 Test wire banana-banana 1000V-20A
    2 pcs
    Option 40, 60, 70, 80 Cable adapters
    1 pc each
    Spare fuse
    1 pc
    RS232 cable
    1 pc

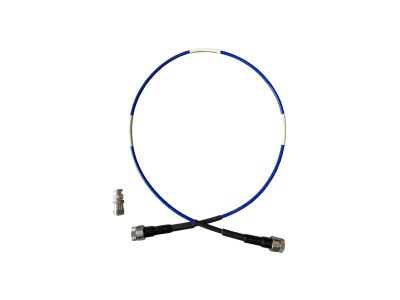

    Options (extra ordered)

    Option 140-50 Current coil 25/50 turns Calibration of clamp ammeters
    Option 10 Test cable 20A/1000V (black) 1m length
    Option 11 Test cable 20A/1000V (red) 1m length
    Option 20 Test cable BNC – BNC 1m length
    Option 30 Test cable BNC – banana 1m length
    Option 40 Cable adapter Canon 25 / 2 x bananan, 1m DC current/voltage measurement
    Option 60 Cable adapter Canon 25 / 4 x banana, 1 m 4W resistance measurement
    Option 70 Cable adapter 4W resistance simulation
    Option 80 Cable adapter Canon 25 / 2 x banana mV DC and TC temperature sensor measurement

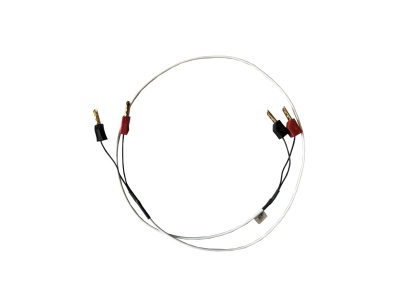

    Option 90 External Pt temperature sensor Pt 1000 probe
    Option 100 Cable adaptor for distance change between panel terminals to 3/4 inch mc140 mc142 opt 100
    Option 140-01 Cable adapter with metal sheet for UUT easy connection With built in temperature sensor
    Cable GPIB GPIB cable 1m length
    Cable RS-232 RS-232, 2m 1.5m length
    WinQbase Database application software
    CALIBER Application SW for automated and semi automated calibrations.
