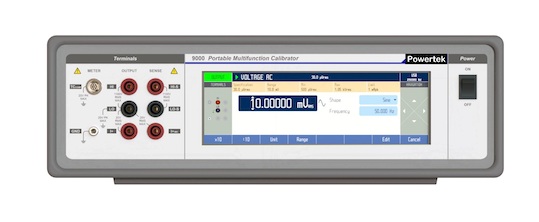

MC9000 Portable Multi-Product Process Calibrator
Check your electrical systems and process-control with our MC9000 Portable Multi-Product Calibrator perfect for on-site field calibration of transducers, thermocouples, 3½ and 4½ digit multimeters
MC9000 Portable Calibrator for Multimeters | Transducers | Probes
65 ppm AC/DC multi-product calibrator designed specifically for calibration of 3½ and 4½ digit multimeters. 1050 V, 20.5 A, resistance, capacitance and temperature packed inside ultra portable, 11 kg body.
- Compact, light, ideal for field calibrations
- On-site checking of process control transducers
- 0-1050V, 0-20.5A
- Resistance, Capacitance
- TC, RTD and Frequency
- Basic accuracy 60 ppm
- All-round calibrator for 3.5 and 4.5 digit multimeters
MC9000 Portable Multi-product calibrator for Multimeters
AC/DC VOLTAGE
DC voltage: 0-1050V, 60ppm
AC voltage: 1mV-1050V, 500ppm, 100kHz max
Internal Voltage ranges: Auto, 10mV, 100mV, 1V, 10V, 100V, 1050V
Frequency range: 10Hz–100kHz below 10V, 40Hz–10kHz up to 100V, 40Hz–5kHz up to 500V, 40Hz–2.5kHz above 500V
Non-sine waveform types: symmetrical square, ramp up, ramp down, triangle, truncated sinus; 1 kHz max
Non-sine amplitude accuracy: 0.21% of value + 0.1% of range + 20µVpk
AC/DC CURRENT
DC current: 0-20.5A, 150ppm
AC current: 1uA-20.5A, 700ppm, 20kHz max
Internal Current ranges: Auto, 200μA, 2mA, 20mA, 200mA, 2A, 20.5A
Frequency range: 10Hz–20kHz below 200mA, 10Hz–10kHz for 200mA-2A, 10Hz–1kHz above 2A
Non-sine waveform types: symmetrical square, ramp up, ramp down, triangle, truncated sinus; 1 kHz max
Non-sine amplitude accuracy: 0.21% of value + 0.1% of range + 700nApk
RESISTANCE
Resistance Range: 0Ω-600MΩ, 50ppm
CAPACITANCE
Capacitance Range: 2nF-120mF, 2500ppm
Amplitude accuracy: 20%
TEMPERATURE SENSOR SIMULATION
TC Temperature: 0.25% accuracy/°C outside Tref with cold junction compensation ±0.05°C
RTD Temperature: 0.25% accuracy/°C outside Tref, ±0.1°C
FREQUENCY
Frequency Range: 0.1Hz-20MHz, 5ppm
GENERAL DATA
Operating temperature: +13°C – +33°C
Storage temperature: -10°C – +55°C
Power Supply: 115/230V±10%-50/60Hz, 450VA max
Dimensions (WxHxD): 390x128x430mm
Weight: 11kg
Interfaces: USB; IEEE488 and Ethernet are optional
MC9000 DatasheetDescription
The MC9000 Portable Multifunction Calibrator is designed specifically for process control and calibration of 3½ and 4½ digit multimeters, replacing the popular MC143 predecessor, the MC9000 comes with much wider frequency ranges, capacitance function and stronger outputs to cover modern day handheld workload, including LoZ function calibration, panel meters, process meters and more.
User comfort
The MC9000 is the same size as a briefcase and weighs just 11 kg so it’s ideal for onsite calibrations. Large HMI 8” touchscreen display is forgiving and a well-thought-out HMI, allowing easy precise control for users.
Automation-ready
USB, Ethernet and IEEE488 interfaces enable remote control from a host computer, in automation and calibration labs as well as industrial test rigs. The MC9000 is fully compatible with Powertek calibration S/W package CALIBER/WinQBase, including CamOCR Camera Readout Module which makes handheld multimeter calibration incredibly effective.
