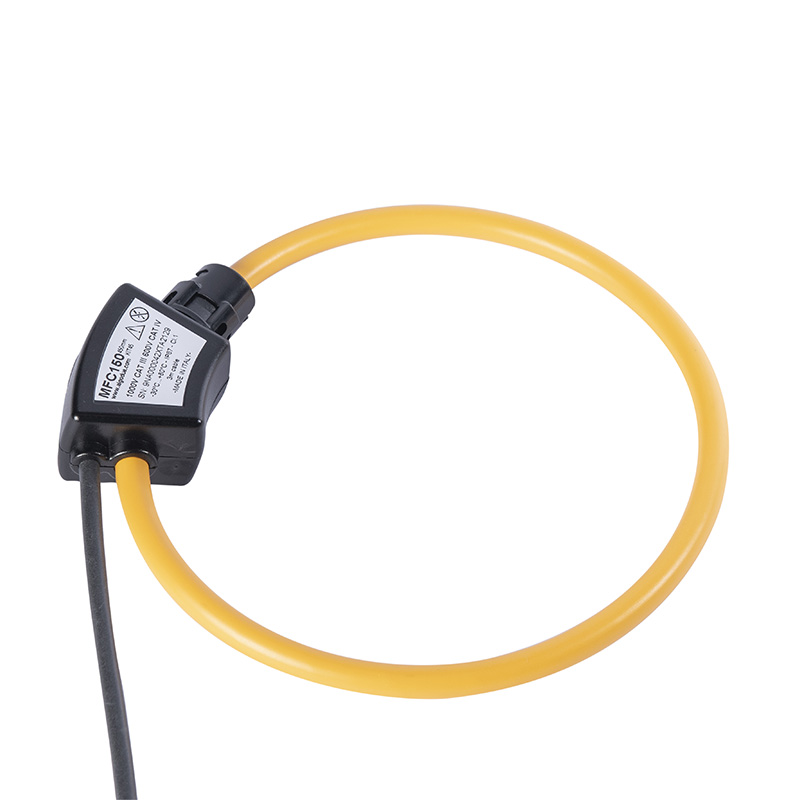

MFC150/F Rogowski coil with a built-in Integrator
The MFC150/F is offered as an all-in-one solution with a built-in integrator. This eliminates the need for any external conditioning equipment, simplifying installation and delivering significant space and cost savings.
Description
Rogowski Coil MFC150/F (8 mm cross section) is a flexible current sensor based on the Rogowski principle. The MFC150/F is a current measurement solution with a built-in integrator, eliminating the need for any external integrator-conditioner equipment, simplifying installation saving space and cost. This sensor system provides the required phase and frequency compensation required for energy measurement applications. MFC150/F coils are available in different sizes and sensitivities sand can be supplied according to customer’s requirements. The MFC150/F current sense coil is provided with a shield minimising effects from external magnetic fields, enabling a stable measurement from small currents to many kA.
- Compatible with most Solar Inverters
- interfaces with mV input Energy meters
- Wide bandwidth
- Faithful representation of current
- Easy and fast to fit
- Allows measurement of current harmonics
- Noise rejections
- Wide measuring range
Specifications:
- Rated current (rms): 100Arms to 50kArms
- Rated output (Full scale FS): 5.0Vrms (±7.07V peak)
- Supply voltage (wide input): 12Vdc(-10%) to 24Vdc(+20%)
- Maximum input power: 0.4W
- Output limit: 150% FS (±10.6Vpk)
- Operating temperature range:
–5℃ to +65℃ (Integrator electronics)
–20℃ to +80℃ (Coil and cable) - Bandwidth (-3dB):
<2000A: 0.6Hz to 1MHz (300mm)
>2000A: 0.2Hz to 1MHz (300mm)
600kHz (700mm) - Phase shift @50Hz:
<2000A: 0.9±0.1 degrees
>2000A: 0.4±0.1 degrees - Accuracy (typ.): ±1.0% of reading (5% to 150% FS, 25℃)
- Output load: >10kohm
- Coil Length: 300mm, 500mm or 700mm (Custom lengths available)
- Cable Length (coil to integrator): 1m standard or 2.5m (Custom lengths available)
Others:
- Traceable calibration (certificate included)
- No magnetic materials means excellent linearity < 0.1% reading
- Fully isolated measurement
- Isolated power supply 2kVdc
- Coil rated at 2kVpeak (withstand test is 4kVrms / 50Hz / 60sec)
- Small DIN rail (or panel mount) enclosure: UL94V-0 rated
Further information:
RCTi/RCTi3ph Dimension DrawingApplications:
| Ordering Code Info | ||||||||
|---|---|---|---|---|---|---|---|---|
| Description |
Model | Current Range(A) | Output | Power Supply | Cable Length (m) | Coil Circumference Length (mm) | ||
| 500A input range, 0-5V output with 12Vdc power, 300mm coil and 1m cable length | RCTi/ | 500A / | 5V / | D24 / | 1 / | 300 | ||
| 5000A input range, 0-5V output with 24Vdc power, 500mm coil and 1m cable length | RCTi3ph/ | 5000A / | 5V / | D24 / | 1 / | 500 | ||
| 2500A range, 0-5V output with 12-24Vdc power, 500mm coil and 1m cable length | RCTi3ph/ | 2500A / | 5V / | D24 / | 1 / | 500 | ||
| 4000A range, 0-5V output with 12-24Vdc power, 200mm 3.5mm mini coil (M) and 1m cable length | RCTi3ph/ | 4000A / | 5V / | D24 / | 1 / | 200M | ||
-NEW-
Optional 3.5mm diameter 100, 200 or 300mm sense coils
* to meet CE / UL safety requirements, an external power adapter is supplied for 125Vdc, 110Vac and 230Vac options
* All products have CE, IEC, EN, ASME or BS approvals.
Options:
- IP65 die-cast aluminium panel mount enclosure (previously known as the IRF)
- Isolated BNC-BNC cable split option between coil and electronics to enable ease of installation e.g. threading through existing conduit. Standard cable permanently fixed.
