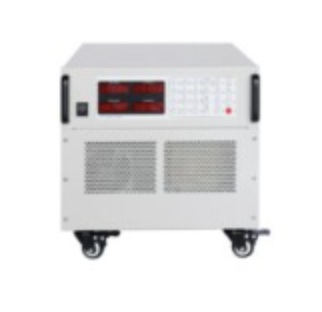

MC103A - Three Phase Current Calibrator
MC103A current calibrator is a precision current source capable of 0-120 A. Typical uses include calibration of current sensors, current probes, clamp current probes, current transformers, shunts, ammeters, DMMs or as stable current source for test and development applications.
- MC103A - Three Phase Current Calibrator
- Frequency: 50Hz, 60Hz and 400Hz
- Range: 0-750A Direct output with 10V compliance
- Sync input allows connection to a voltage calibrator - creating a powerful Active/reactive Power Calibration Test Rig
- Accuracy options 0.2%, 0.5% and 1.0% accuracy
- RS485 interface
- Modbus interface
Description
The MC103A current calibrator is a precision current source capable of 0-120 A. Typical uses include calibration of current sensors, current probes, clamp current probes, current transformers, shunts, ammeters, DMMs or as stable current source for test and development applications. The calibrator operates with its precision internal signal source or as an amplifier using an external signal. Its built-in multimeter can be used for checking and simulation of programmable transconductance or as a current amplifier.
The calibrator includes many other features which facilitate easy use, for example display of output uncertainty (%), deviation, calibration and testing procedures etc. The calibrator's control and indication is available on large TFT color display, which provides all necessary indications. The calibrator and its options, are easily controlled via a clear menu structure. Frequently used functions are assigned to direct-control keys. The calibrator comes with standard IEEE488 GPIB and USB/RS232 interfaces, which allows full control from a PC.
Data Sheets
Specifications
| Range | % of value + % of range |
Maximal Voltage | % of value + % of range |
% of value + % of range |
Maximal Voltage | Maximal Voltage |
|---|---|---|---|---|---|---|
| DC | 15-40Hz 70-1000Hz |
40-70Hz | 15-40Hz | 400-1000Hz | ||
| 0.0080000 | 0.025 + 0.01 | 8V | 0.03 + 0.02 | 0.025 + 0.01 | 5.5 V | 3.5 V |
| 0.30001 | 0.025 + 0.01 | 8V | 0.03 + 0.02 | 0.025 + 0.01 | 5.5 V | 3.5 V |
| 1.00001 | 0.025 + 0.01 | 8V | 0.03 + 0.02 | 0.025 + 0.01 | 5.5 V | 3.5 V |
| 2.00001 | 0.025 + 0.01 | 5V | 0.03 + 0.02 | 0.025 + 0.01 | 3.5 V | 3.5 V |
| 5.0001 | 0.03 + 0.015 | 5V | 0.04 + 0.02 | 0.03 + 0.015 | 3.5 V | 3.5 V |
| 10.0001 | 0.035 + 0.015 | 5V | 0.05 + 0.02 | 0.035 + 0.015 | 3.5 V | 3.5 V |
| 30.0001 | 0.035 + 0.015 | 5V | 0.05 + 0.02 | 0.035 + 0.015 | 3.5 V | 3.5 V |
| 60.0001 | 0.035 + 0.015 | 5V | 0.05 + 0.02 | 0.035 + 0.015 | 3.5 V | 3.5 V |
Multimeter
| Function | Range | % of value + % of range |
|---|---|---|
| AC voltage < 1kHZ | 0-20V | 0.2% + 0.2% |
| AC voltage > 1kHZ | 0-20V | 0.05 % + 0.05 % |
| DC voltage | ±20V | 0.01 % + 0.01 % |
| AC current < 1kHZ | 0 - 200 mA | 0.02 % + 0.02 % |
| AC current > 1kHZ | 0 - 200 mA | 0.05 % + 0.05 % |
| DC current | ±200 mA | 0.01 % + 0.01 % |
| frequency | 1 Hz - 10 kHz | 0.005 % + 0.00 % |
- 25 turn copper current cable with active cooling for calibration of AC/DC clamp ammeters up to 3000A
- Can be used with MC151 or MC133C in high current mode.
- Mounted with two 12V fans for active cooling during high load situations.
- Additional uncertainty 0.3% applies to DC as well as AC current up to 100Hz.
- Datasheet - option 151-25
